Zifnu Project - WS2812b RGB LED Illuminated Stash Box
If you need a place to put things that you may want to find in the dark, then this is the project for you.
Also just a cool, unique item that would make a great conversation piece or gift.
All the files and details are below. Please download, modify if you wish, and build something awesome.
Main Project Components:
- Zifnu WS2812b RGB LED Lens Breakout Boards
- Laser-cut 2.7mm Bamboo box pieces (Have these laser cut by your favorite laser cutting service)
- Custom Control Board (PIC16F1455 Microcontroller, USB, DC-DC Boost Regulator, Reed & Tact Switches)
- Control Board Firmware (MPLABX/XC8)
- Hinges (from ebay or other source)
- Latch (from ebay or other source)
- Feet (from ebay or other source)

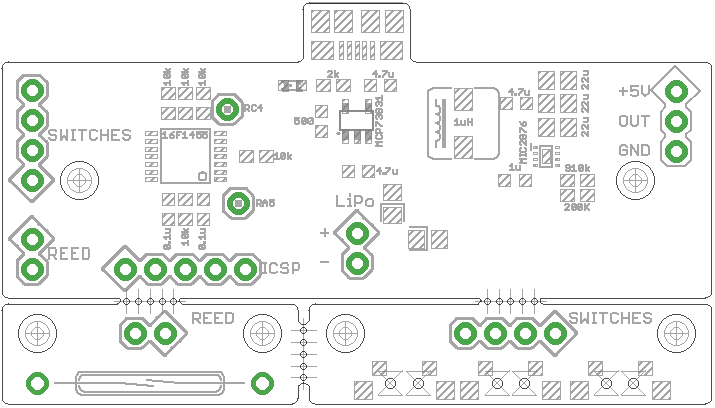

Control Board Details:
- Microcontroller: Microchip PIC16F1455 (USB)
- Battery Charger IC: Microchip MCP73831
- DC-DC Boost Regulator: Microchip/Micrel MIC2876
- Switches: 1 Reed, 3 Tact
- ICSP Header: Yes
- Extra I/O: Yes, RA5 & RC4
- Source Voltage: 3.7v (nominal - from Li-Ion cell)
- Boost Voltage: 5v

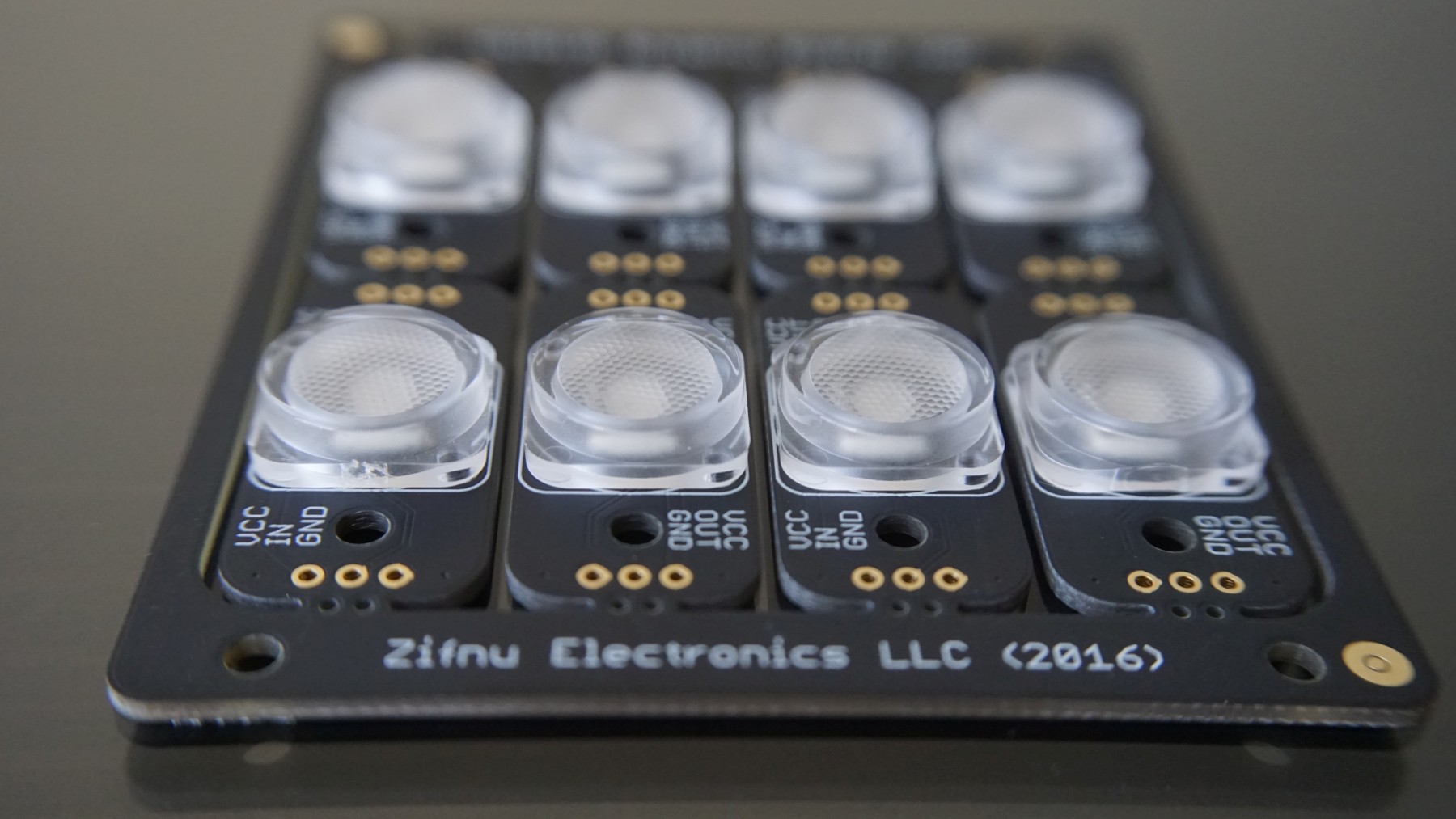

WS2812b RGB LED Lens Breakout Boards
