PIXEL - Programmable Full-Color LED Flashlight Kit
- Currently on Kickstarter -

Introducing The Zifnu PIXEL, the world's first, and most advanced, programmable & customizable full-color 16 LED flashlight kit.

As the name implies, you can individually control each of the PIXEL's sixteen full-color LEDs (aka "pixels") individually by modifying the provided example Arduino sketch and uploading your changes to the PIXEL via USB.

The Zifnu PIXEL is completely open-source, this includes the circuit & PCB design, the software (Arduino Sketch), and the laser-cut case design. All of the files will be available for download once they are finalized after the successful completion of the Kickstarter campaign.

PIXEL Kit Components

Assembled Case & PCB

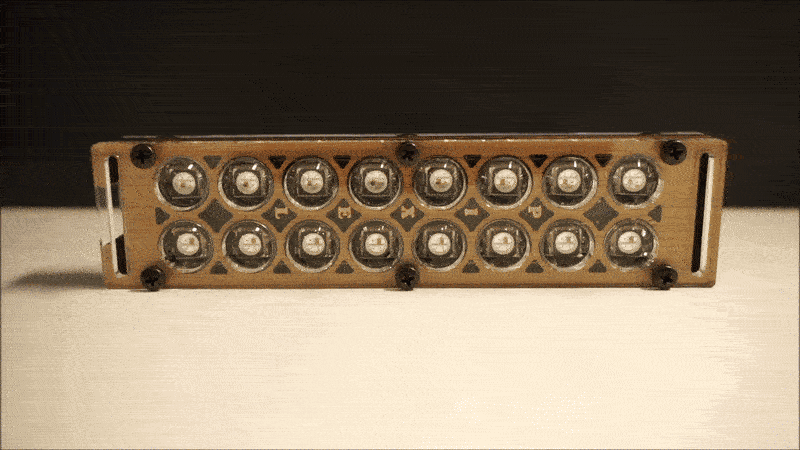

Power On, Off Sequence

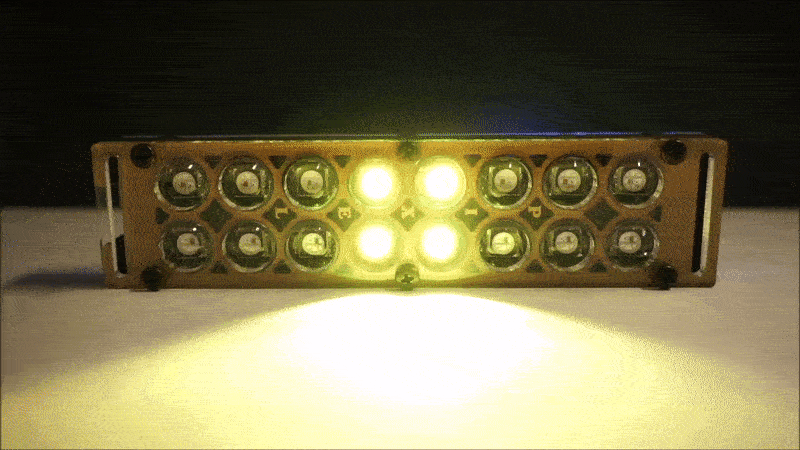

Center Sweep - Yellow


PIXEL Flashlight Kit Feature Highlights:
  • Arduino IDE compatible (sketch upload via USB port, no programmer required)
  • ATTINY85-20SU 8-bit microcontroller running at 16MHZ
  • Pre-programmed with the Micronucleus bootloader
  • Loaded with an example sketch that includes 13 display modes
  • Sixteen individually-addressable full-color LEDs (WS2812b)
  • Sixteen high-quality PMMA LED lenses to focus the light
  • 5VDC boost regulator to ensure consistent LED brightness
  • Li-Po Battery management IC with Blue status LED
  • Combined Power/Mode switch with Blue power indicator LED
  • 1500mAh Li-Po battery for long run times
  • Externally-accessible Reset button (used for entering programming mode)
  • Micro USB port for charging and programming
  • Customizable laser-cut case design

Display Modes Included in Example Sketch:
  • HIGH, Cool White
  • HIGH, Warm White
  • Medium, Warm White
  • LOW, Warm White
  • RED, All LEDs are Red
  • GREEN, All LEDs are Green
  • BLUE, All LEDs are Blue
  • RED FLASH, All LEDs are Red and flash at ~350ms rate
  • BEACON, All LEDs are Cool White for a 50ms burst every 3 seconds
  • RED CHASE, All LEDs are Red and in a chase pattern
  • YELLOW WIPE 1, All LEDs are Yellow and wipe from one side to the other
  • YELLOW WIPE 2, All LEDs are Yellow and wipe from the center point outwards

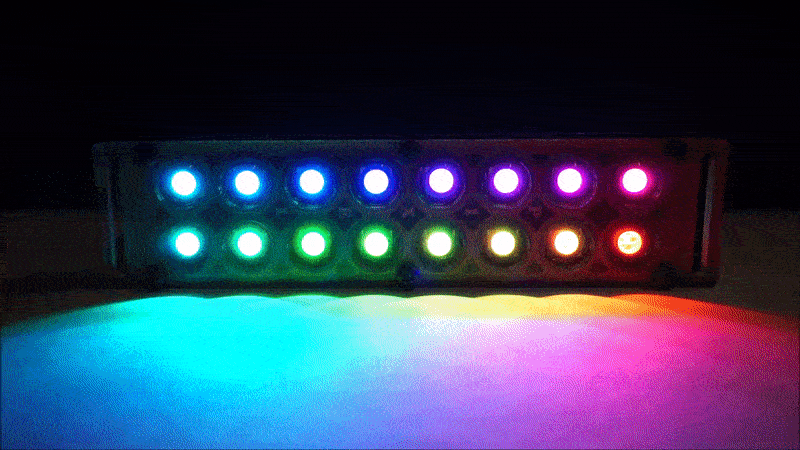

  • RAINBOW, All LEDs cycle through their colors in a chase pattern

Laser-Cut Case Dimensions:
  • Height: 145mm (5.71")
  • Width: 35mm (1.38")
  • Depth: 17mm (0.67")

PCB Dimensions:
  • Height: 130mm (5.12")
  • Width: 26mm (1.02")
  • Depth: 13mm (0.51")
